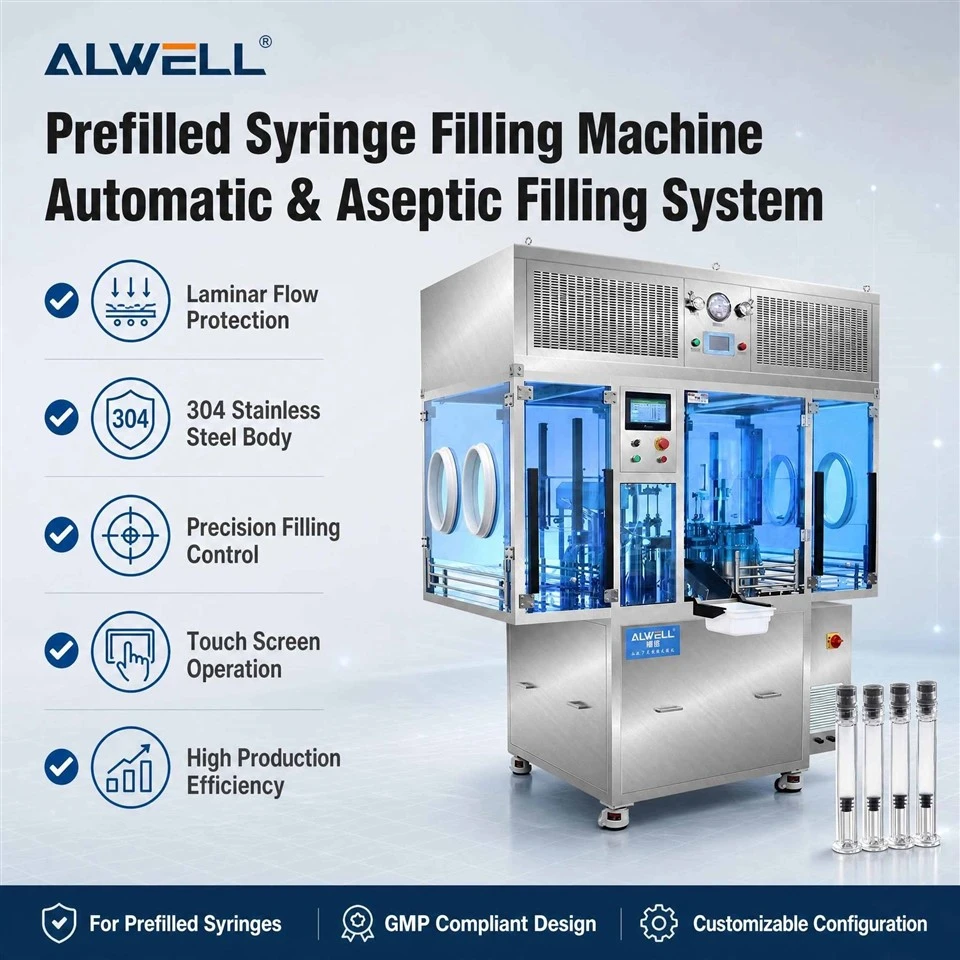

High-Precision Automatic Syringe Filling and Stoppering Machine
Our fully automatic syringe filling and stoppering machine is engineered for high-precision liquid dosing and bubble-free vacuum stoppering of prefilled syringes. Designed specifically for pharmaceutical, biopharmaceutical, and medical aesthetic applications, this compact system delivers unmatched reliability while strictly complying with cGMP, FDA, and EU Annex 1 standards.
Key Advantages & Technical Features
High-Precision Dosing: Equipped with servo-driven ceramic or peristaltic pumps to ensure consistent accuracy within ±1%
Vacuum Stoppering Technology: Advanced vacuum-assisted rubber stopper insertion eliminates head-space air bubbles and prevents oxidation of sensitive active ingredients.
Gentle Nest Handling: Specially designed mechanical grippers handle nest-packed syringes smoothly, preventing friction, glass breakage, or surface scratches.
Process Workflow & Technical Specifications
1. Manual De-Bagging (MANUAL DE-BAGGING) Operators manually remove the pre-sterilized tubs/troughs from protective sterile bags in a Class C cleanroom area, preparing the nest-packed syringes for cleanroom transfer and automated processing.
2. Automatic Prefilled Dosing (AUTOMATIC PREFILLED DOSING)
Under Class A laminar flow, high-precision servo-driven pumps accurately dose the sterile liquid product into the pre-sterilized syringes with ±1% volumetric accuracy.
3. Vacuum Stoppering & Closing (AUTOMATIC PFS STOPPERING & CLOSING)
Rubber stoppers are inserted automatically using vacuum-assisted technology, completely eliminating headspace air bubbles and securing an airtight, sterile seal to guarantee drug shelf-life integrity.
| Feature / Specification | Capability / Parameter |
| Applicable Syringes | 0.5 ml – 20 ml (Glass / Plastic/ Nest Syringes) |
| Filling Accuracy | ≤±1% (Servo-Controlled) |
| Control System | Siemens PLC with HMI Touchscreen |
| Compliance | 21 CFR Part 11 & cGMP Ready |

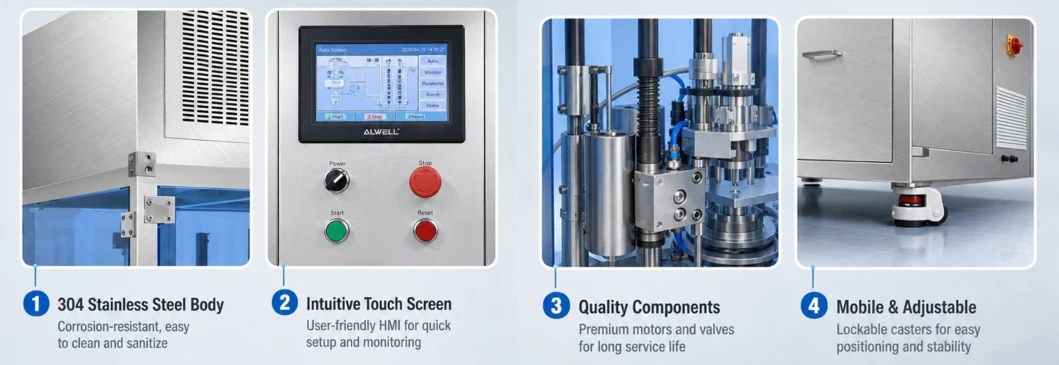

Premium Components & Quality Control
World-Class Components for Uncompromising Reliability
To ensure continuous 24/7 operation and strict pharmaceutical compliance, we build our machines using globally recognized high-end components:
- PLC & HMI Control: Siemens S7-1500 Series with multi-language touch screen
- Servo Drive System: Schneider Electric / Panasonic Servo Motors for sub-micron positioning
- Pneumatic Components: Festo / SMC precise pneumatic control
- Detection Sensors: Keyence / Omron photoelectric and laser sensors for missing stopper & liquid level verification
- Dosing Pump Materials: Ultra-smooth CoorsTek Ceramic Pumps or Watson-Marlow Peristaltic Tubing

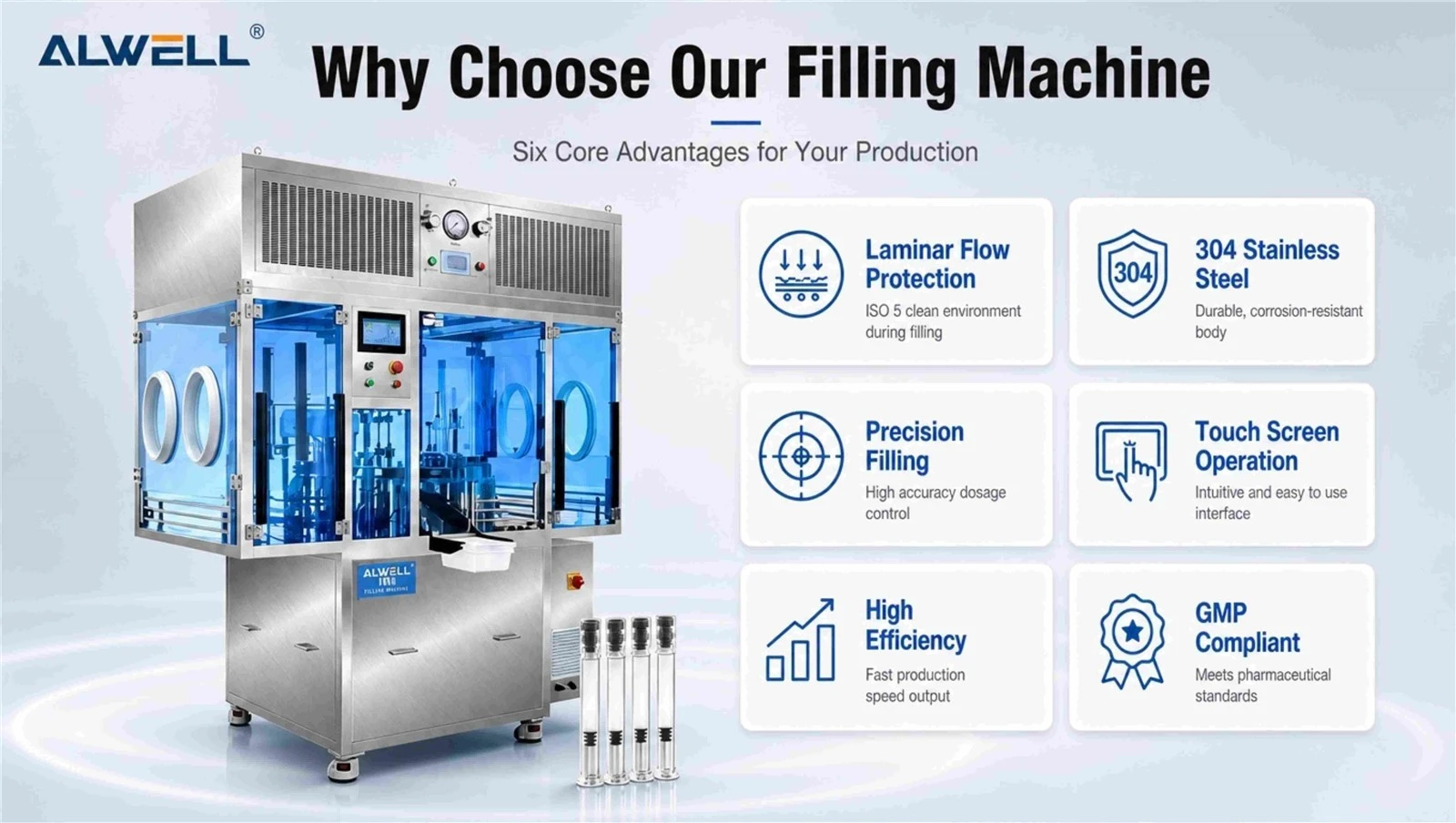

Why Choose Our Automated Syringe Solutions?
Whether you are scaling up biopharmaceutical production or processing sensitive liquid formulations like hyaluronic acid and peptides, our robust syringe filling and stoppering machine provides the flexibility, sterility, and accuracy your production line requires.
Ready to upgrade your sterile packaging process? Contact our engineering team today to receive a custom technical proposal and formal quote.
FAQ: Frequently Asked Questions
Q1: What is a syringe filling and stoppering machine?
A: A syringe filling and stoppering machine is an automated, aseptic pharmaceutical packaging equipment designed to precisely dose liquid or gel products into pre-sterilized syringes (PFS) and immediately insert rubber stoppers to secure a sterile seal.
Q2: What types of liquids can a syringe filling and stoppering machine process?
A: These machines handle a wide range of pharmaceutical and cosmetic liquids, including vaccines, biopharmaceuticals, peptides (e.g., GLP-1, insulin), hyaluronic acid, dental gels, and veterinary formulations.
Q3: How does vacuum stoppering work, and why is it essential?
A: Vacuum stoppering creates a temporary vacuum inside the syringe barrel before placing the rubber stopper. This process completely eliminates headspace air bubbles, prevents product oxidation, and ensures consistent stopper positioning for high-viscosity or oxygen-sensitive drugs.
Q4: What filling pump options are available for syringe filling machines?
A: The most common options are ceramic rotary piston pumps (ideal for high-precision, low-shear, and non-drip liquid dosing) and peristaltic pumps (ideal for single-use, cross-contamination-free single-pass operations).
Q5: What is the dosing accuracy of your automated syringe filling machine?
A: Our machines utilize high-precision servo drives to achieve filling accuracy within ≤±1%, minimizing costly liquid waste-especially critical for high-value biopharmaceuticals.
Q6: Does the syringe filling and stoppering machine comply with cGMP and FDA standards?
A: Yes. All contact parts are made of 316L stainless steel, medical-grade PTFE, or advanced ceramics. The machine complies fully with cGMP, FDA 21 CFR Part 11, and EU Annex 1 regulations for aseptic processing.
Q7: Can this machine handle different sizes of prefilled syringes?
A: Yes. By changing quick-release format parts, the machine can process standard nest-packed syringes ranging from 0.5 ml to 20 ml with minimal downtime.
Q8: What is the average lead time and installation requirement for a custom machine?
A: Standard manufacturing lead time ranges from 60 to 90 days depending on custom options. The system requires standard cleanroom power/compressed air utilities and undergoes complete Factory Acceptance Testing (FAT) before shipment.
